产品详情

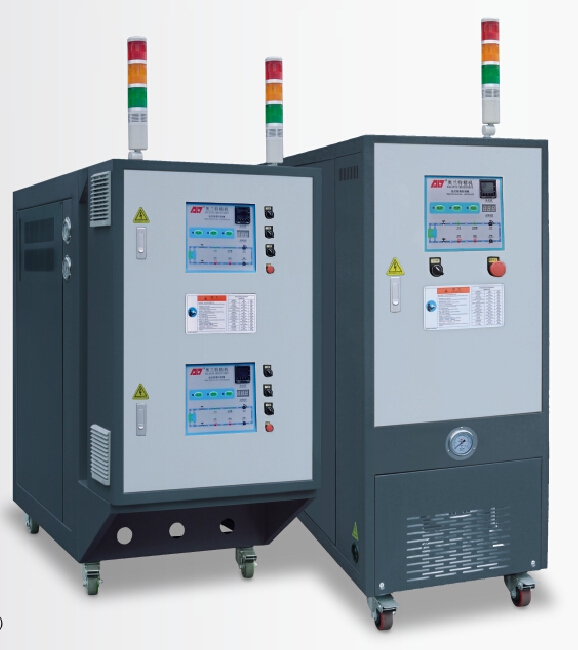

一、350℃油式模温机特点:
Features
管路防爆装置
Explosion-proof device for pipelines
回油温度显示表
Thermometer for return oil
开机自动排气功能
Automatic air-exhausting function after startup
油泵反抽回油功能
Return oil back suction of oil pump
加热功率切换功能
Switchover of heating power
隔离式电器控制箱,延长电器使用年限
Isolated electric box for longer services lives of electric appliances
负压系统运转(选购)
Negative-pressure system (optional)
RS485通讯功能,实现自动化管理.(选购)
RS485 communication function for automated management (optional)
即时冷却回油关机功能
Instant cooling return oil shut-down function
热油BY-PASS泄压回路
BY-PASS pressure release loop for hot oil
油泵马力和加热功率可订作
Customizable horsepower and heating power of oil pump
全系列采用德国SPECK油泵(磁力泵、永不漏油)
SPECK oil pumps (magnetic pumps never suffering from oil leakage) imported from Germany for all series products
全系列采用欧美高温管路元件
American and European high-temperature pipeline components for all series products
电器采用OMRON. FUJI. TE. LG.
Brands OMRON, FUJI, TE and LG for electric appliances
温度控制范围: 进水温+25℃→350℃
Range of temperature control: +25℃→350℃ for incoming water
304不锈钢一体管路,减少管阻及锈垢
304 stainless steel integrated pipelines for less pipe resistance and rust
控制方式: 采用进口微电脑或(选购)PLC控制
Control mode: imported microcomputer or PLC (optional)
安全保护完善,故障显示,维修.保养无需专业人员
二、350℃油式模温机规格:
模型 |
单位 |
TOH-18 |
TOH-36 |
TOH-48 |
TOHS-18 |
TOHS-36 |
TOHS-48 |
温控范围 |
℃ |
常温-350℃ |
|||||
温控精度 |
℃ |
PID±1℃ |
|||||
电源 |
|
AC3∮380V |
|||||
传热媒体 |
|
导热油 |
|||||
冷却方式 |
|
间接冷却 |
|||||
膨胀箱容量 |
L |
25 |
25 |
30 |
42 |
42 |
50 |
加热能量 |
KW |
9x2 |
12x2 |
20x2 |
18+18 |
24+24 |
40+40 |
泵浦功率 |
KW |
0.55 |
1.1 |
2.8 |
0.55+0.55 |
1.1+1.1 |
2.8+2.8 |
泵浦流量 |
L/MIN |
35 |
60 |
100 |
35+35 |
60+60 |
100+100 |
泵浦压力 |
Kg/CM2 |
5 |
5.5 |
6.8 |
5.0+5.0 |
5.5+5.5 |
6.8+6.8 |
大电力消耗 |
KW |
19 |
26 |
52 |
38 |
52 |
104 |
特殊功能 |
|
泵浦反转回油 |
|||||
警报功能 |
|
缺相/缺油/超温/过载/溢油/加热异常警报 |
|||||
冷却水配管 |
INCH |
1/2 |
1/2 |
1/2 |
3/4 |
3/4 |
3/4 |
循环油配管 |
INCH |
3/4 |
3/4 |
1 |
3/4x2 |
3/4x2 |
1x2 |
外型尺寸 |
MM |
1250x420x1100 |
1250x420x1100 |
1450x500x1350 |
1350x550x1250 |
1350x550x1250 |
1435x600x1350 |
以上规格如有变更,恕不另行通知,特殊规格可另行设计制 |
|
|
|
|
Perfect safety protection, fault display, easy repair and maintenance even without professionals
